Product Details
Place of Origin: Beijing,CHINA
Brand Name: YUDA
Certification: ISO
Model Number: BG-95A/BG-95B/BG-96A/BG-96B
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Thermal Conductivity、Refractoriness Under Load、Tridymite Content: |
High Dense ( Good Conductivity), High Refractoriness Under Load, High Tridymite Content |
True Density, Expansion, Creep,Residual Quartz: |
Low True Density, Low Expansion, Low Creep, Low Residual Quartz |
Dimension、Colors、Appearance: |
Correct Dimension, Pure Colors, Good Appearance |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Thermal Conductivity、Refractoriness Under Load、Tridymite Content: |
High Dense ( Good Conductivity), High Refractoriness Under Load, High Tridymite Content |
True Density, Expansion, Creep,Residual Quartz: |
Low True Density, Low Expansion, Low Creep, Low Residual Quartz |
Dimension、Colors、Appearance: |
Correct Dimension, Pure Colors, Good Appearance |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

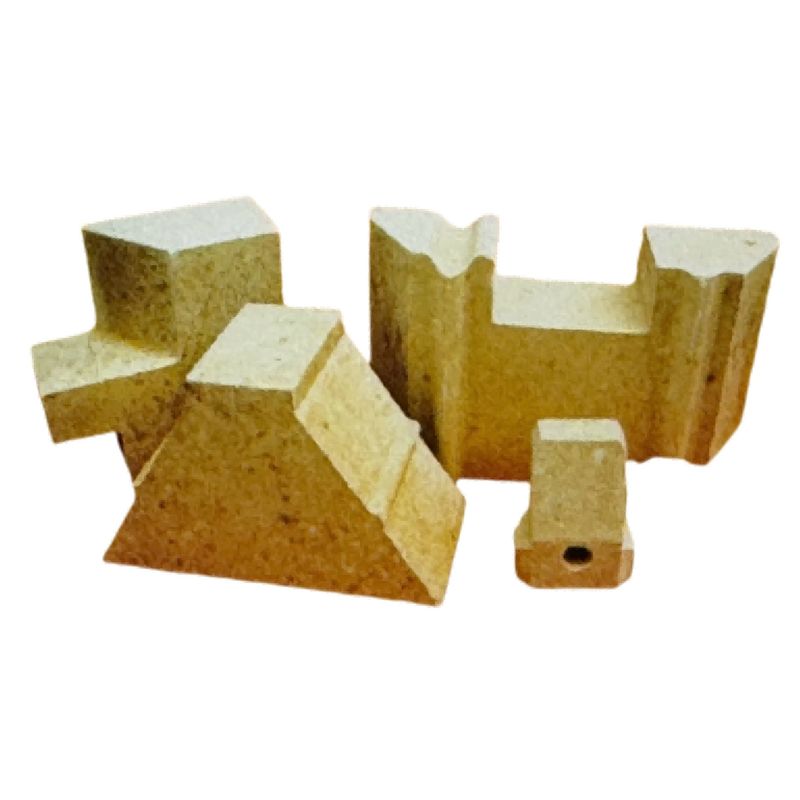

Silica Brick
Silica Brick/High Dense , high refractoriness under load, high tridymite content/Low true density, low expansion, low creep, low residual quartz/Correct dimension, pure colors, good appearance
Summary:
Silica Brick is an acidic refractory material mainly composed of scale quartz, square quartz, and a small amount of residual quartz and glass phase, with silicon dioxide as its main component. Silicon brick is a key refractory material in high-temperature areas of industrial kilns such as coke ovens, hot air stoves, and glass kilns.
Product features:
Range of application:
Construct the carbonization chamber, combustion chamber, and partition wall of the coke oven. The kiln roof, pool walls, and hot blast stove of a glass tank kiln. The arch and other load-bearing parts of high-temperature kilns, as well as the high-temperature load-bearing parts of hot blast stoves.
Technical data:
|
Product Name |
Common Silica Bricks |
|||
| Product Code | BG-95A | BG-95B | BG-96A | BG-96B |
| SiO2(%)≥ | 95 | 95 | 96 | 96 |
| Fe2O3(%)≥ | 1.2 | 1.2 | 0.8 | 1.0 |
| Apparent Porosity (%) | 22(24) | 22(24) | 22(24) | 22(24) |
| Bulk Density (g/cm3) | 2.35 | 2.35 | 2.34 | 2.34 |
| Crushing Strength(MPa) | 35 | 35 | 35 | 35 |
| Softening Point Under Load 0.2 MPa(℃) | 1660 | 1650 | 1680 | 1670 |
| Melt Index(%)≤ | 0.7 | - | 0.6 | - |
|
Linear change On reheating(%)(1450℃×2h) |
- | - | - | - |
| Product Name |
Quality Silica Bricks |
||
| Product Code | XBG-96 | ZBG-96 | DBG-96 |
| SiO2(%)≥ | 96 | 96 | 96 |
| Fe2O3(%)≥ | 0.9 | 0.9 | 1.0 |
| Apparent Porosity (%) | 22 | 23 | 24 |
| Bulk Density (g/cm3) | 2.34 | 2.34 | 2.35 |
| Crushing Strength(MPa) | 35 | 30 | 30 |
| Softening Point Under Load 0.2 MPa(℃) | 1680 | 1680 | 1670 |
| Melt Index(%)≤ | 0.5 | 0.5 | 0.6 |
|
Linear change On reheating(%)(1450℃×2h) |
0.3 | 0.3 | 0.3 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 100×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 24 months.
Construction method:
Use refractory mortar for construction.
YuDa’s Expertise
Beijing Yuda's main business includes refractory materials, insulation materials, wear-resistant materials, metal materials, and provides refractory material diagnosis, design, research and development, manufacturing, construction, and maintenance services. For many years, we have been committed to providing our customers with the highest quality products, the most comprehensive services, and the most accurate solutions, saving them time, effort, and money, and ensuring the stable operation of high-temperature kilns. At the same time, we can also provide engineering general contracting services such as refractory material selection, design, installation, and maintenance, optimize refractory material configuration, improve the synergy between refractory materials and processes, increase kiln operation rate, and provide you with comprehensive nanny style services.
Contact Us
If you have any questions, please feel free to contact us and we will be happy to serve you, thank you for your support.Yuda has always adhered to the development philosophy of "serving needs and creating value", based on national strategy, and serving global customers.
E-mail: bjydnh@163.com
WhatsApp:+86 17822353985
We look forward to assisting you with your refractory needs and providing you with the best solutions for your industrial applications.
