Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: ANKRAL ZF
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Fire Resistance: |
Excellent Fire Resistance |
Resistance To Chemical Erosion Properties: |
Good Resistance To Chemical Erosion Properties |
Structural Flexibility: |
Excellent Structural Flexibility |
Ability To Form The Kiln Skin: |
A Strong Ability To Form The Kiln Skin |
Thermal Conductivity: |
Low Thermal Conductivity |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Fire Resistance: |
Excellent Fire Resistance |
Resistance To Chemical Erosion Properties: |
Good Resistance To Chemical Erosion Properties |
Structural Flexibility: |
Excellent Structural Flexibility |
Ability To Form The Kiln Skin: |
A Strong Ability To Form The Kiln Skin |
Thermal Conductivity: |
Low Thermal Conductivity |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

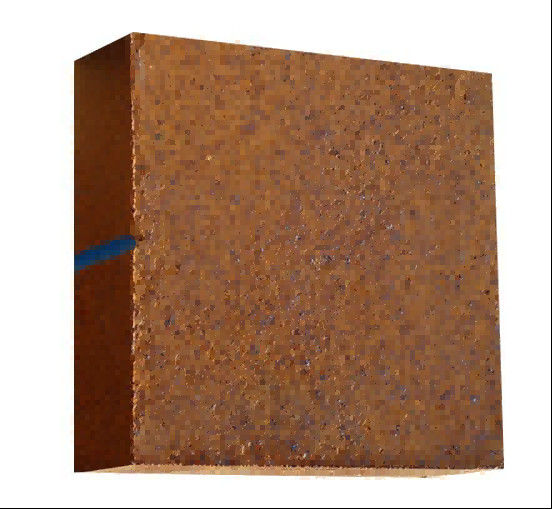

Magnesite Composite Spinel Brick (ANKRAL ZF)
Magnesite Composite Spinel Brick (ANKRAL ZF) /Excellent fire resistance/Good resistance to chemical erosion properties//Excellent structural flexibility/A strong ability to form the kiln skin
Summary:
ANKRAL ZF has been especially designed to withstand high mechanical stresses incombination with chemical load. lt is based on high grade natural sintered magnesia and the patented hercynite spinel, which is successfully used in ANKRAL ZC. The outstanding flexibility is achieved by the combination with a further flexibilizer and an optimized microstructure. Due to the use of hercynite this brick also has a high ability to form coating. The unique raw material concept further more imparts this brick a high resistance to chemical attack with low thermal conductivity. lt can be recommended for the lining of the whole basic section of the rotary kiln.
Product features:
1. Excellent fire resistance
2. Good resistance to chemical erosion properties
3. Excellent structural flexibility
4. A strong ability to form the kiln skin
5. Low thermal conductivity
Range of application:Burning Zone
Technical data:
| Product Name |
Magnesite Composite Spinel Brick (ANKRAL ZF) |
||
| Chemical Composition (%) | MgO | 85.4 | |
| CaO | 1.5 | ||
| SiO2 | 0.7 | ||
| Al2O3 | 9.3 | ||
| Fe2O3 | 3.1 | ||
| Bulk Density (g/cm3) | 2.9 | ||
| Apparent Porosity (%) | 17 | ||
| Cold Crushing Strength (MPa) | 60 | ||
| Refractoriness Under Load T0.6 (℃) | ＞1700 | ||
|
Thermal Shock Resistance(Air Cooling)(Cycles) |
＞100 | ||
|
Thermal Conductivity (W/m.K) |
500℃ | 4.3 | |
| 750℃ | 3.5 | ||
| 1000℃ | 3 | ||
| Raw Material | Magnesia Hercynite | ||
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:Dry masonry
