Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: PLEOMAG 90
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Chemical Corrosion Resistance: |
Good Acid And Alkali Resistance And Corrosion Resistance |
Thermal Conductivity: |
Excellent Thermal Conductivity |
Insulation Performance: |
Good Insulation Performance |
Compressive Strength: |
Can Withstand Large Loads And Impact Forces |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Chemical Corrosion Resistance: |
Good Acid And Alkali Resistance And Corrosion Resistance |
Thermal Conductivity: |
Excellent Thermal Conductivity |
Insulation Performance: |
Good Insulation Performance |
Compressive Strength: |
Can Withstand Large Loads And Impact Forces |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

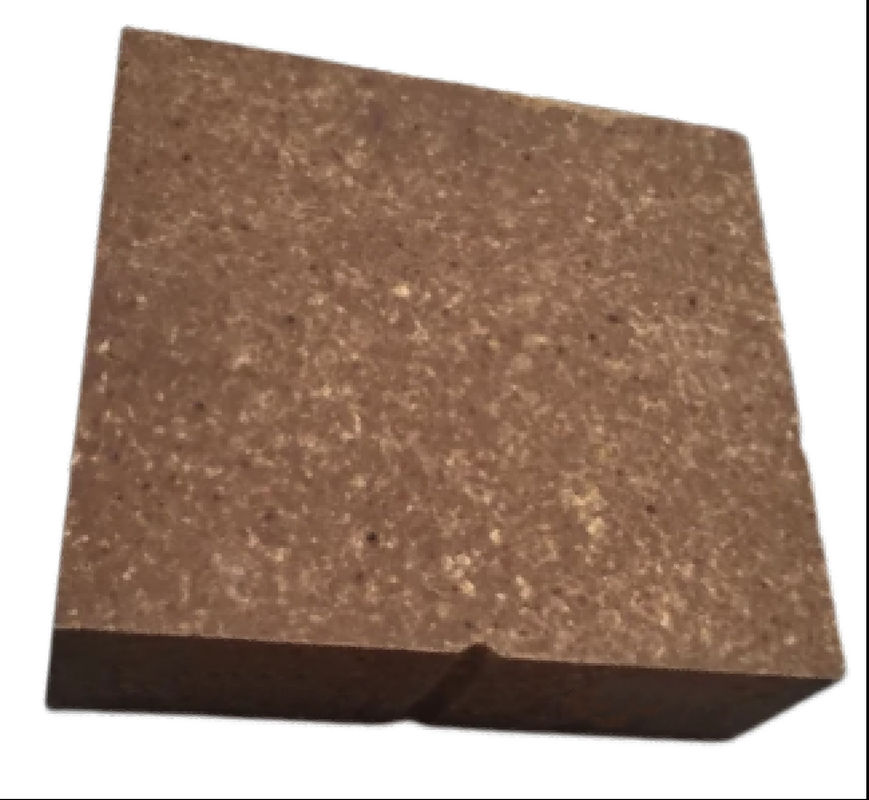

Magnesium Iron Spinel Brick (PLEOMAG 90)
Magnesium Iron Spinel Brick (PLEOMAG 90) /Good acid and alkali resistance and corrosion resistance/Excellent thermal conductivity/Good insulation performance/Can withstand large loads
Summary:
PLEOMAG 90 Magnesium Iron Spinel Bricks are mainly made of magnesium oxide and magnesium iron spinel, and are formed by high-pressure molding and high-temperature sintering. It has good acid and alkali resistance and corrosion resistance, excellent thermal conductivity and insulation performance, and can withstand large loads and impact forces.
Product features:
Range of application:
Rotary Kiln Burning Zone(Moderately harsh operating conditions inside the kiln);
Technical data:
| Magnesia Alumina Spinel Bricks | UNIT | INDEX |
| I T E M | ||
| PLEOMAG 90 | ||
| MgO | % | 87-92 |
| Al₂O₃ | % | 3-7 |
| CaO | % | 1.5 |
| SiO2 | % | 0.8 |
| Fe2O3 | % | 3-6 |
| Main Raw Materials |
MgO, Magnesium Iron Spinel |
|
| Bulk Density | g/cm³ | 2.90-3.05 |
| Apparent Porosity | % | 15-17 |
| Cold Crushing Strength | MPa | ＞60 |
| Refractoriness Under Load | ℃ | 1700 |
| Linear Thermal Expansion Rate 1000℃ | % | 1.35 |
| Thermal Shock Stability(950℃ Air Cooling)≥ | 次 times |
100 |
| Thermal Conductivity 1000℃ | W/m.k | 2.6 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
