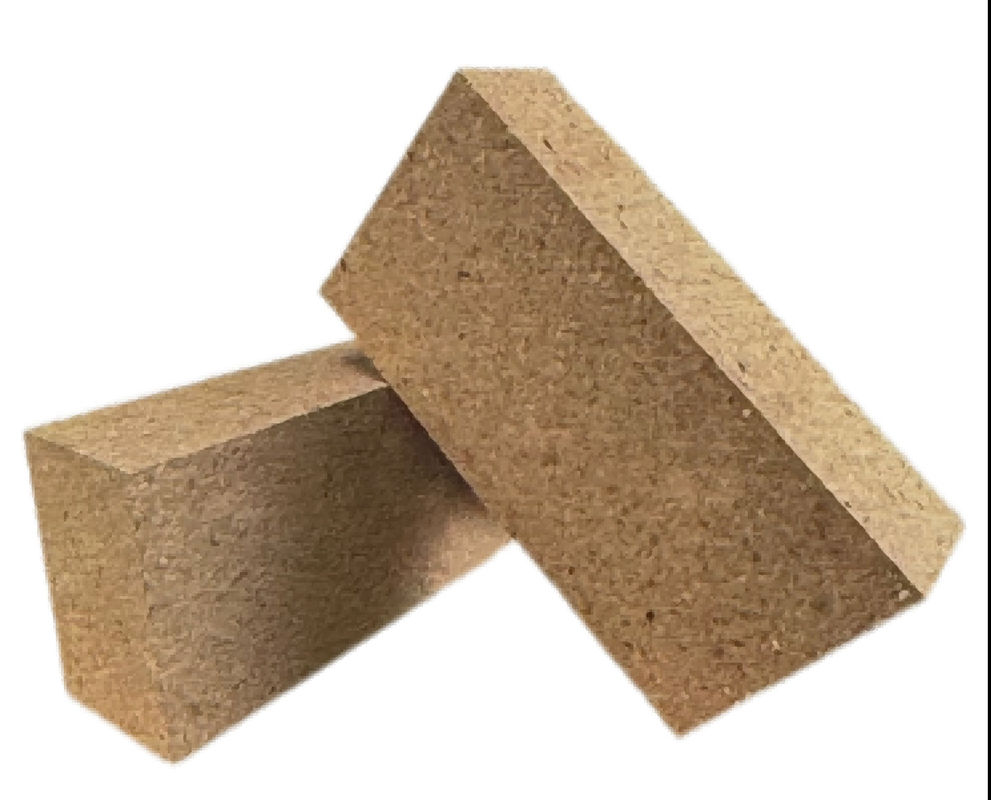

Magresia Brick(ZM)
Magresia Brick (ZM) /High melting point/High hardness/High thermal stability/Good resistance to alkaline slag
Summary:
The product is a refractory with MgO content of more than 80% and periclase as the main crystalline phase.
Product features:
1. High melting point, high hardness, and high thermal stability
2. Good resistance to alkaline slag
Range of application
Used for the safety lining of metallurgical furnaces, working lining of refractory materials calcining kilns and glass kiln checkerchamber.
Technical data:
| Product Name |
ZMZ- |
ZMZ- |
ZMZ- |
ZMZ-95B |
ZMZ- |
ZMZ-97A | ZMZ-97B | ZMZ-98A | ZMZ-98B |
| MgO (%) | ≥91 | ≥92 | ≥95 | ≥94.5 | ≥96 | ≥97 | ≥96.5 | ≥97.5 | ≥97.3 |
| SiO2(%) | ≤5 | ≤3.5 | ≤2.0 | ≤2.0 | ≤1.5 | ≤0.8 | ≤1.0 | ≤0.6 | ≤0.6 |
| CaO (%) | ≤3.0 | ≤2.5 | ≤2.0 | ≤2.5 | ≤1.5 | ≤1.3 | ≤1.5 | ≤1.0 | ≤1.1 |
|
Apparent Porosity(%) |
≤18 | ≤18 | ≤18 | ≤18 | ≤17 | ≤17 | ≤17 | ≤16 | ≤16 |
| Bulk Density(g/cm3) | ≥2.90 | ≥2.93 | ≥2.95 | ≥2.95 | ≥2.98 | ≥3 | ≥2.98 | ≥3.02 | ≥3 |
|
Cold Crushing Strength(MPa) |
≥55 | ≥55 | ≥60 | ≥55 | ≥60 | ≥65 | ≥60 | ≥65 | ≥65 |
| Refractoriness Under Load T0.6(℃) | ≥1560 | ≥1600 | ≥1650 | ≥1650 | ≥1670 | ≥1700 | ≥1700 | ≥1700 | ≥1700 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:
Dry masonry.
