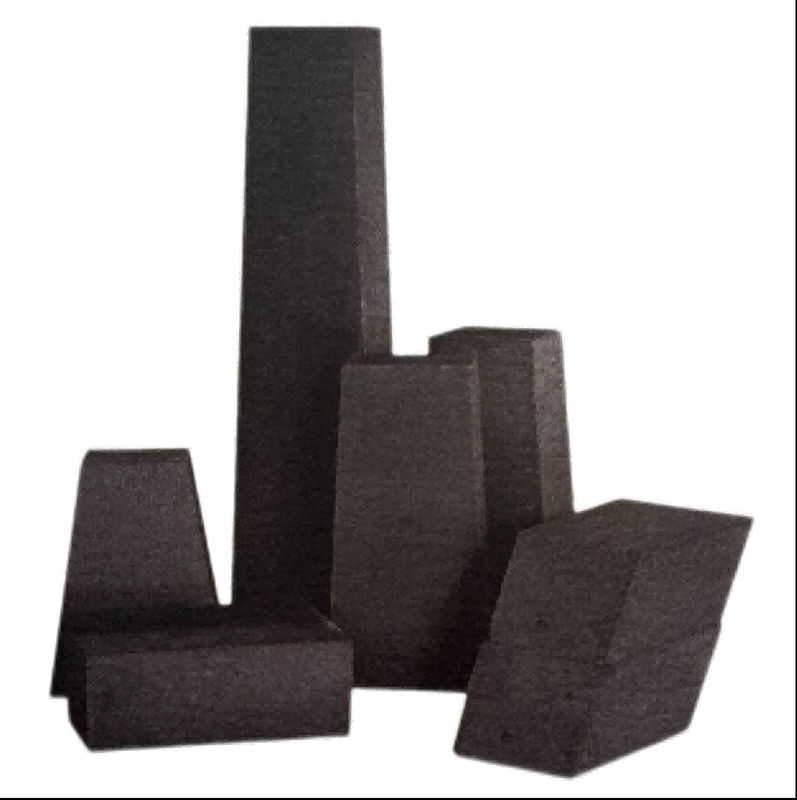

MgO-CaO Brick
Summary:
MgO-CaO Brick is made of two-step calcined magnesium calcium sand and high quality high purity (electromelting or sintering) magnesia as raw materials, made of high pressure molding, high temperature sintering, vacuum dipping, and has excellent high temperature creep and slag resistance performance, and is the ideal environmental protection material for AOD and VOD refining furnace.
Product features:
Range of application:Used for AOD, VOD refining furnace
Technical data:
| Brand Specification |
MgO-CaO Brick | |||||||
|
ZMG- 50A |
ZMG- 40A |
ZMG-30A | ZMG-30B | ZMG-25A |
ZMG- 25B |
ZMG- 20A |
ZMG- 20B |
|
| MgO%≥ | 40 | 50 | 60 | 58 | 62 | 60 | 68 | 66 |
| CaO%≥ | 48 | 38 | 28 | 28 | 23 | 23 | 18 | 18 |
| ∑ (F+A+S)%≤ | 2.5 | 3.0 | 3.0 | 3.5 | 3.0 | 4.0 | 3.5 | 4.0 |
| Apparent Porosity % ≤ | 14 | 14 | 14 | 15 | 14 | 15 | 14 | 15 |
| Bulk Density g/cm³ ≥ | 3.00 | 3.05 | 3.05 | 3.00 | 3.00 | 2.95 | 2.95 | 2.90 |
| Cold Crushing Strength MPa ≥ | 55 | 55 | 55 | 50 | 55 | 50 | 55 | 50 |
|
Refractoriness Under Load of 0.2MPa ℃ ≥ |
1700 | 1700 | 1700 | 1680 | 1700 | 1680 | 1700 | 1680 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:Dry masonry.
