Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: VDZ
Model Number: ZMT-3A/ZMT-5A/ZMT-8A/ZMT-10A/ZMT-12A/ZMT-14A/ZMT-16A/ZMT-18A/ZMT-20A
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Density: |
Low Density |
Thermal Expansion Coefficient: |
Low Thermal Expansion Coefficient |
Thermal Conductivity: |
Low Thermal Conductivity |
Strength: |
High Strength |
Wear Resistance: |
Good Wear Resistance |
Corrosion Resistance: |
Good Corrosion Resistance |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Density: |
Low Density |
Thermal Expansion Coefficient: |
Low Thermal Expansion Coefficient |
Thermal Conductivity: |
Low Thermal Conductivity |
Strength: |
High Strength |
Wear Resistance: |
Good Wear Resistance |
Corrosion Resistance: |
Good Corrosion Resistance |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

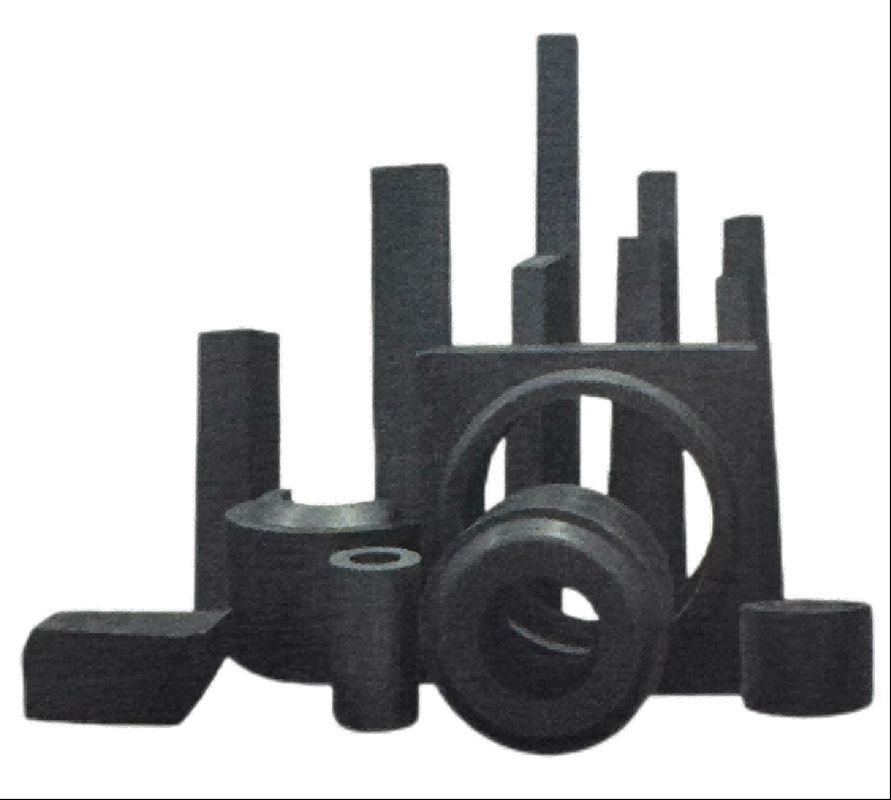

MgO-C Brick
MgO-C Brick/Low density/Low thermal expansion coefficient/Low thermal conductivity/High strength/ Good wear resistance/Good corrosion resistance
Summary:
MgO-C Brick is a high temperature material made of mixing magnesium and graphite powder at a certain proportion. It has the characteristics of low density, low thermal expansion coefficient and low thermal conductivity. At the same time, magnesium carbon brick also has high strength, high wear resistance, corrosion resistance and other excellent properties.
Product features:
Range of application:
Widely used in the steel smelting industry, such as the lining of converters, electric furnaces, steelmaking machines and other equipment; It can also be applied in the aluminum silicate industry, such as pipeline lining, kiln frame, electrode and other components in copper smelting, tin smelting and other fields.
Technical data:
Brand Specification |
Mg0-C Brick | ||||||||
|
ZMT- 3A |
ZMT- 5A |
ZMT- 8A |
ZMT-10A | ZMT-12A |
ZMT- 14A |
ZMT- 16A |
ZMT-18A | ZMT-20A | |
| MgO % ≥ | 87 | 85 | 82 | 80 | 78 | 76 | 74 | 72 | 70 |
| C % ≥ | 3 | 5 | 8 | 10 | 12 | 14 | 16 | 18 | 20 |
|
Bulk Density g/cm³ ≥ |
3.15 | 3.10 | 3.05 | 2.98 | 2.98 | 2.96 | 2.94 | 2.90 | 2.88 |
|
Apparent Porosity % ≤ |
7.0 | 6.0 | 5.5 | 5.5 | 4.5 | 4.0 | 3.5 | 3.0 | 3.0 |
| Cold Crushing Strength MPa ≥ | 45 | 40 | 40 | 35 | 35 | 30 | 30 | 30 | 25 |
| Hot Modulus of Rupture 1400℃×0.5h MPa ≥ |
- | - | - | 6 | 6 | 10 | 8 | 10 | 8 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 110×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 6 months.
Construction method:Dry masonry.
