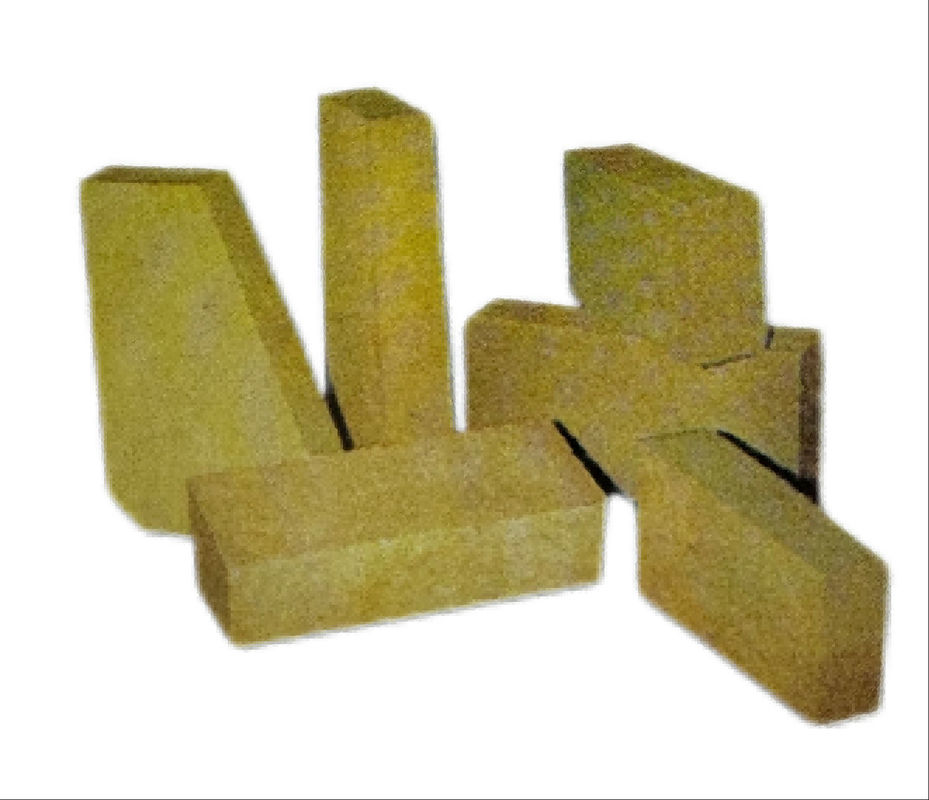

High Alumina Bricks Used for Roof of Electric Arc Furnace for Steelmaking
High Alumina Bricks Used for Roof of Electric Arc Furnace for Steelmaking/Excellent high temperature mechanical properties/Excellent chemical erosion resistance/Better thermal shock stability
Summary:
Electric furnace top high aluminum brick refers to the bauxite clinker and a small amount of clay made of Al2O3 content of more than 65%, used for the refractory products of electric furnace top.
Product features:
High aluminum brick for steelmaking electric furnace roof has excellent high temperature mechanical properties and chemical erosion resistance. Especially for not burning products, the shape size is more accurate, and the thermal shock stability is better.
Range of application:
High aluminum brick for steelmaking electric furnace roof is mainly used in steel industry, the top of steelmaking electric furnace.
Technical data:
|
Brand Items |
DL-80 | DL-75 | BDL-A | BDL-B |
| Al2O3 % ≥ | 80 | 75 | 75 | 75 |
| Refractoriness ℃ ≥ | 1790 | 1790 | 1790 | 1790 |
| Refractoriness under load 0.2MPa ℃ ≤ | 1530 | 1520 | 1620 | 1580 |
|
Reheat linear change 1500℃×2h % |
0.2~-0.4 | 0.2～-0.4 | 0~-0.3 | 0~-0.4 |
| Apparent porosity % ≤ | 19 | 19 | 20 | 20 |
| Cold crushing strength MPa ≥ | 75 | 65 | 60 | 55 |
|
Resistance to themalshock times ≥ (1100℃,water-cooling) |
- | - | 30 | 25 |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 100×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 24 months.
Construction method:
The masonry roof must be balanced and appropriate expansion joints must be left in the radial and circumference. Bake it before use. In the process of smelting operation, it is appropriate to use lower grade bricks, and when melting erosion is mainly damaged, it is appropriate to use higher grade bricks. And in the continuous high temperature smelting, add the furnace cover top blowing ash.
