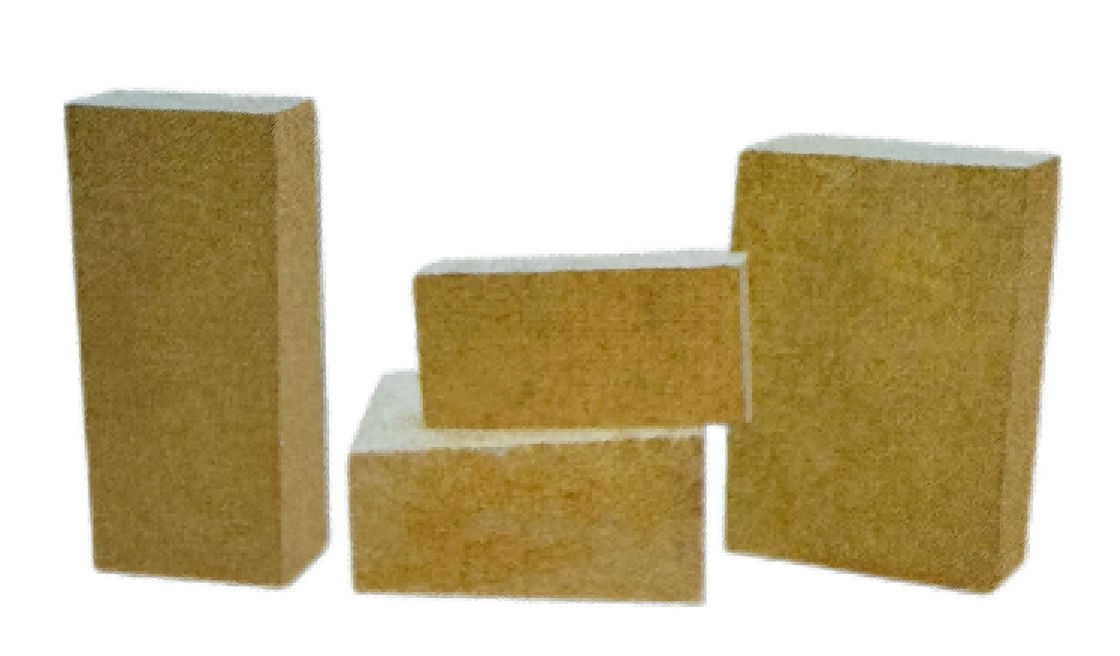

Low Creep High Aluminum Bricks for Hot Blast Furnace
Low Creep High Aluminum Bricks for Hot Blast Furnace/Low creep rate /Good volume stability/Good resistance to gas erosion and erosion resistance/Excellent high compressive strength
Summary:
Low Creep High Aluminum Bricks is a kind of high aluminum refractory brick, because of the characteristics of low creep rate, it is called low creep high aluminum brick, which is used in high temperature industrial kilns under long-term high temperature environment.
Product features:
Range of application:
Can be used in hot blast furnace, can also be used in other industrial kilns.According to the specific construction requirements, low creep high aluminum bricks of different sizes are made, such as lattice bricks, special-shaped bricks, anchor bricks, etc., which are mainly used in industrial kilns with long-term high temperature environment.
Technical data:
| Brand Item |
DRL -155 |
DRL -150 |
DRL -145 |
DRL -140 |
DRL -135 |
DRL -130 |
DRL -127 |
|
| Al₂O₃ % ≥ | 75 | 75 | 65 | 65 | 65 | 60 | 50 | |
|
Apparent Porosity % ≤ |
20 | 21 | 21 | 22 | 22 | 22 | 23 | |
| Bulk Density g/cm³ ≥ |
2.65- 2.85 |
2.65- 2.85 |
2.50- 2.70 |
2.40- 2.60 |
2.35- 2.55 |
2.30- 2.50 |
2.30- 2.50 |
|
|
Cold Crushing Strength MPa ≥ |
60 | 60 | 60 | 55 | 55 | 55 | 50 | |
|
Creep Rate (0.2MPa,50h) % ≤ |
1550℃ | 1500℃ | 1450℃ | 1400℃ | 1350℃ | 1300℃ | 1270℃ | |
| 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | 0.8 | ||
|
Permanent % |
1550℃×2h | -0.2~0.1 | -0.2~0.1 | -0.2~0.1 | -- | -- | -- | -- |
| 1450℃×2h | -- | -- | -- | -0.2~0.1 | -0.4~0.1 | -0.4~0.1 | -0.4~0.1 | |
|
Thermal shock stability (1100℃,Water cooling) times |
(Furnace Top and Wall Bricks) Provide data | |||||||
| Note:Volume density is the reference index for the quantity of bricks used in design,without examination. | ||||||||
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 100×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 24 months.
Construction method:
Use refractory mortar for construction.
