Product Details
Place of Origin: Beijing,China
Brand Name: YUDA
Certification: ISO
Model Number: NG-0.5/NG-0.6/NG-0.8/NG-1.0/NG-1.3/NG-1.5
Payment & Shipping Terms
Minimum Order Quantity: 1 Ton
Packaging Details: Packed on wooden pallets, with water-proof cover, and tightened with plastic/steel bandages
Delivery Time: 20-30 Days
Payment Terms: T/T, L/C
Supply Ability: 2000 tons/month
Refractoriness: |
High Refractoriness |
Erosion Resistance: |
Resistance To The Erosion Of Acid Slag And Gas |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |
Refractoriness: |
High Refractoriness |
Erosion Resistance: |
Resistance To The Erosion Of Acid Slag And Gas |
Keyword: |
Refractories Materials |
Feature: |
Fireproof,Heat Resistant |
Service Temperature: |
1000℃-1800℃ |
Customized: |
Yes |

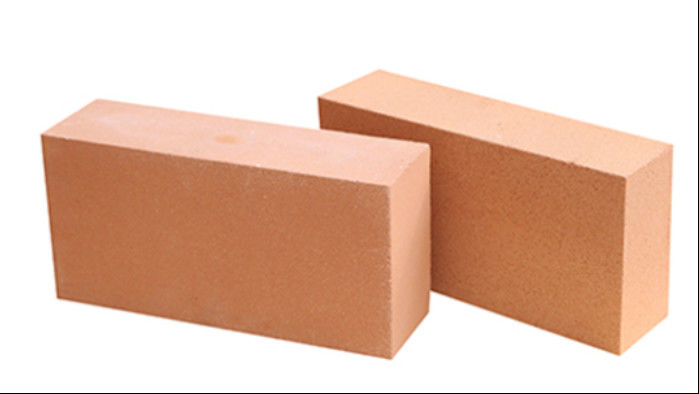

Lightweight Clay Insulation Brick
Lightweight Clay Insulation Brick/High refractoriness/Resistance to the erosion of acid slag and gas
Summary:
Clay Insulation Brick, also known as Clay Heat Insulation Brick, is a refractory product with Al2O3 content of 30%~48% made of refractory clay as the main raw material. Its production process adopts the burning out adding method and foam method.
Product features:
Technical data:
| Brand | NG-0.5 | NG-0.6 | NG-0.8 | NG-1.0 | NG-1.3 | NG-1.5 | |
| USA Brand |
ISO125 -0.5 |
ISO125 -0.6 |
ISO135 -0.8 |
ISO135 -1.0 |
ISO140 -1.2 |
ISO140 -1.5 |
|
| Max Service Temperature(℃) | 1150 | 1200 | 1280 | 1300 | 1350 | 1400 | |
| Bulk Density(g/cm3) | 0.55 | 0.6 | 0.8 | 1.0 | 1.3 | 1.5 | |
|
Apparent Porosity % |
80 | 70 | 60 | 55 | 50 | 40 | |
| Cold Crushing Strength (Mpa)≥ | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 6.0 | |
| Reheating Linear Change (%)℃X 12H≤ | 1250℃ -0.5 |
1300℃ -0.5 |
1350℃ -0.5 |
1350℃ -0.9 |
1350℃ -0.9 |
1350℃ -0.9 |
|
|
(W/m.k) |
400℃ | 0.14 | 0.25 | 0.35 | 0.41 | 0.51 | 0.6 |
| 600℃ | 0.16 | 0.29 | 0.45 | 0.43 | 0.61 | 0.71 | |
| 800℃ | 0.18 | 0.31 | 0.50 | 0.44 | 0.67 | 0.77 | |
| 1000℃ | 0.20 | 0.33 | 0.60 | 0.45 | 0.8 | 0.9 | |
| Al2O3(%) | 37 | 40 | 40 | 40 | 40 | 42 | |
| Fe2O3 (%) | 1.0 | 1.5 | 1.5 | 1.5 | 2 | 2 | |
| SiO2 | 44 | 55 | 55 | 55 | 55 | 55 | |
Packaging and Storage:
Wooden pallets+thermoplastic film packaging,size 100×80×70 mm and weighs about 1.4 tons /pallet ;Store in a dry, moisture-proof warehouse,storage period is 24 months.
Construction method:
Use refractory mortar for construction.
